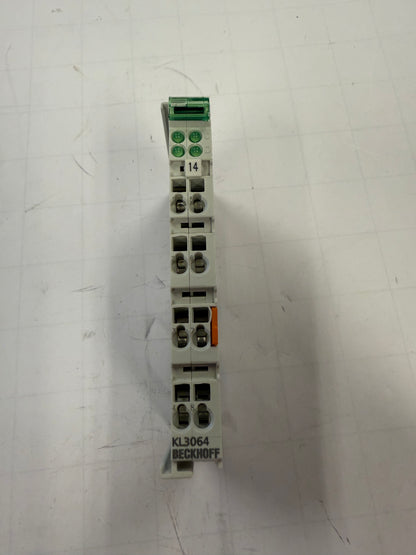

Beckhoff PLC module KL3064

The Beckhoff KL3064 is a 4-channel analog input terminal designed to handle voltage signals ranging from 0 to 10 V. It digitizes these signals with a 12-bit resolution and transmits them, electrically isolated, to the higher-level automation device. The input channels share a common ground potential, and the terminal features run LEDs that indicate data exchange with the Bus Coupler.

Key Features:

• Input Channels: Four single-ended analog inputs.
• Signal Voltage Range: 0 to 10 V.
• Resolution: 12-bit.
• Conversion Time: Approximately 1 ms.
• Input Impedance: Approximately 200 kΩ.
• Electrical Isolation: 500 V (K-bus/field potential).
• Current Consumption: Approximately 5 mA via K-bus.
• Operating Temperature Range: -25°C to +60°C.
• Protection Rating: IP20.
• Dimensions (W x H x D): 12 mm x 100 mm x 68 mm.

Applications:

The KL3064 is suitable for applications requiring precise voltage measurements, such as:

• Industrial Automation: Monitoring analog sensor outputs.
• Process Control: Acquiring analog signals for process variables.
• Building Automation: Integrating analog signals from various building systems.
