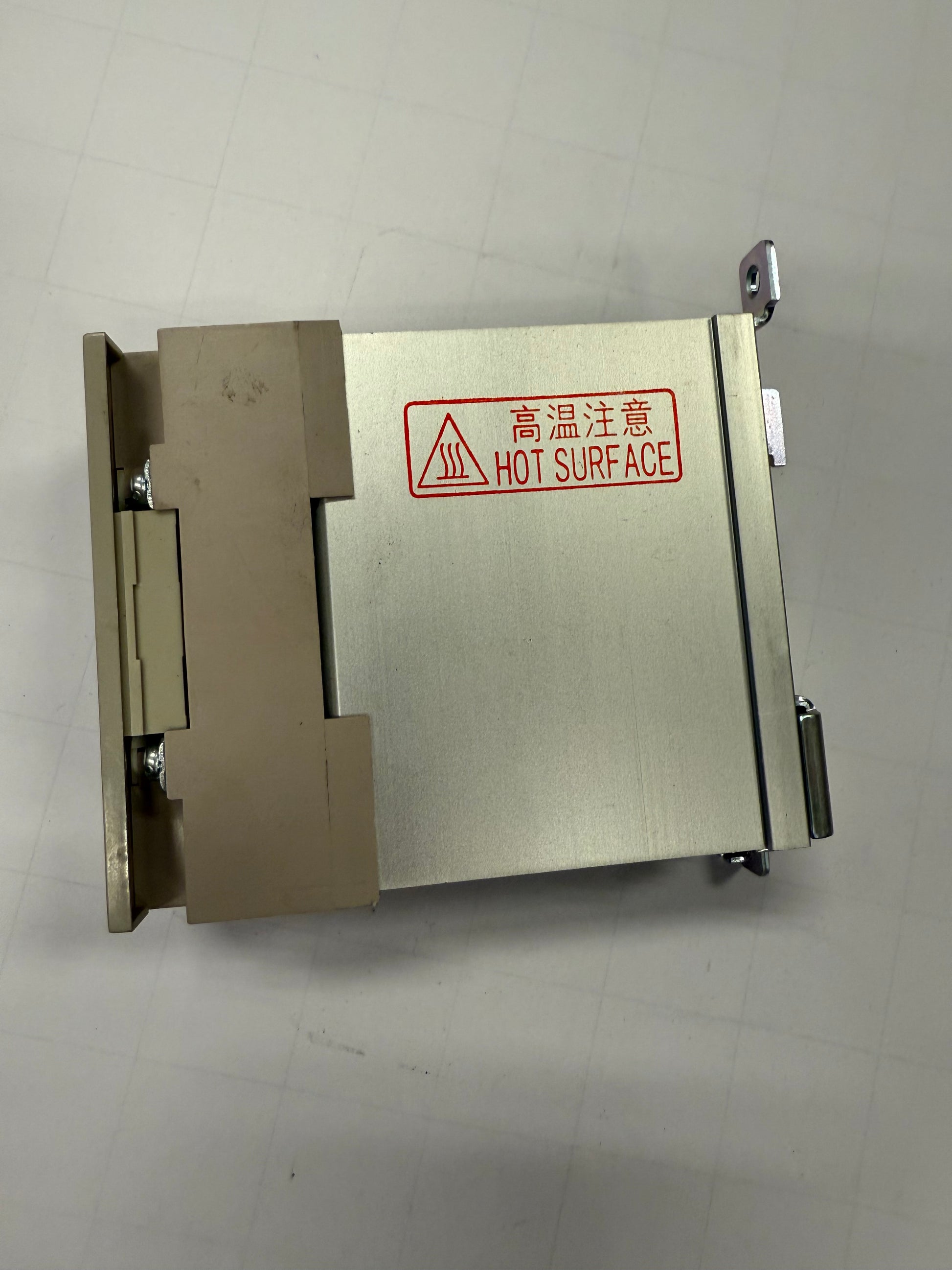

Omron G3PA-420B-VD

The Omron G3PA-420B-VD is a solid-state relay (SSR) designed for efficient and reliable switching of AC loads. It features an integrated heat sink, allowing for compact installation without the need for additional cooling components.​

Key Features:

• Load Voltage Range: 200 to 400 VAC at 50/60 Hz.​

• Load Current: Capable of handling up to 20 A at 30°C ambient temperature.​

• Input Control Voltage: Operates with a DC control voltage range of 12 to 24 VDC.​

• Mounting Options: Supports both DIN rail and screw mounting for versatile installation.​

• Output Configuration: Single-pole, normally open (SPST-NO) with zero-cross switching to minimize electrical noise.​

• Operating Temperature Range: Designed to function in environments from -30°C to 80°C.​

Applications:

The G3PA-420B-VD is suitable for various industrial applications, including:​

• Controlling heaters and ovens.​

• Switching motors and lighting systems.​

• Automated manufacturing processes.
