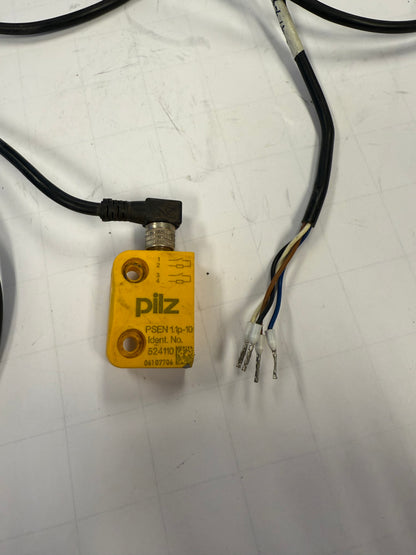

Pilz PSEN 1.1p-10

The Pilz PSEN 1.1p-10 is a non-contact magnetic safety switch from the PSENmag series, designed to monitor the position of movable safety guards, such as doors and covers. It ensures machines operate only when safety guards are properly closed, enhancing operational safety.

Key Features:

• Non-Contact Operation: Utilizes magnetic actuation, reducing wear and tear and allowing for flexible installation tolerances.
• Compact Design: Square-shaped with dimensions of 36 x 26 x 13 mm, facilitating installation in space-constrained areas.
• High Protection Rating: Rated at IP67, ensuring reliable performance in dusty and wet environments.
• Dual Reed Contacts: Equipped with two normally open (N/O) reed contacts for enhanced safety monitoring.
• Assured Operating Distance: Guaranteed actuation at a distance of 3 mm, with a release distance of 19 mm.
• Standardized Connection: Features a 4-pin M8 male connector for straightforward integration into existing control systems.

Specifications:

• Operating Voltage: 24 V DC
• Housing Material: Durable thermoplastic for robustness and longevity.
• Operating Temperature Range: -25°C to +70°C, suitable for various industrial environments.
• Mounting Orientation: Flexible mounting options; ensure the switch and actuator are aligned parallel and opposite each other for optimal performance.

Applications:

Ideal for industries requiring stringent safety measures, including manufacturing, packaging, and automation. The PSEN 1.1p-10 is particularly suited for applications where:

• Frequent access to machinery is necessary, and non-contact operation can minimize maintenance.
• Space limitations demand compact safety solutions.
• Harsh environmental conditions exist, necessitating devices with high ingress protection.

Condition: USED
